As AI-powered portable hardware continues evolving, compact AI smart note devices are becoming an emerging category in consumer electronics and intelligent terminal applications. These lightweight devices are increasingly used in smart home systems, portable translation tools, mobile office equipment, handheld medical devices, and industrial identification terminals.

To support the growing demand for compact AI hardware, TOPTE has developed a customized 3.95-inch ultra-thin LCD display module designed specifically for AI smart note devices and other portable intelligent terminals.

Combining an ultra-slim structure, low power consumption, and high-resolution IPS display technology, the module helps manufacturers optimize both product design and user experience.

Key Display Challenges for AI Smart Note Devices

Based on publicly available specifications and market analysis of mainstream AI smart note devices, display modules used in these compact terminals typically face several common technical challenges.

1.Ultra-Thin Structural Requirements

To maintain portability, most AI smart note devices are designed with an overall thickness of approximately 6 mm or less. Under these structural constraints, the complete display stack — including cover glass, touch panel, and optical bonding — generally needs to remain below 2 mm.

However, many conventional 3.95-inch display modules currently available on the market typically range between 2.3 mm and 2.8 mm in thickness, making them difficult to integrate into ultra-compact device architectures.

2.Low Power Consumption for Small Battery Systems

Most portable AI smart terminals use batteries within the 500–1200 mAh range. For devices expected to support all-day intermittent operation, display power consumption becomes a critical factor affecting battery life and overall user experience.

As a result, display modules for these applications must maintain low operating current while still delivering stable visual performance.

3.Outdoor Visibility Under Strong Ambient Light

Portable AI devices are frequently used outdoors or in high-brightness environments, requiring a careful balance between brightness, power efficiency, and reflection control.

Simply increasing backlight brightness can significantly reduce battery endurance in compact devices. Therefore, advanced display integration technologies such as In-Cell full lamination become increasingly important for improving outdoor readability while maintaining lower power consumption.

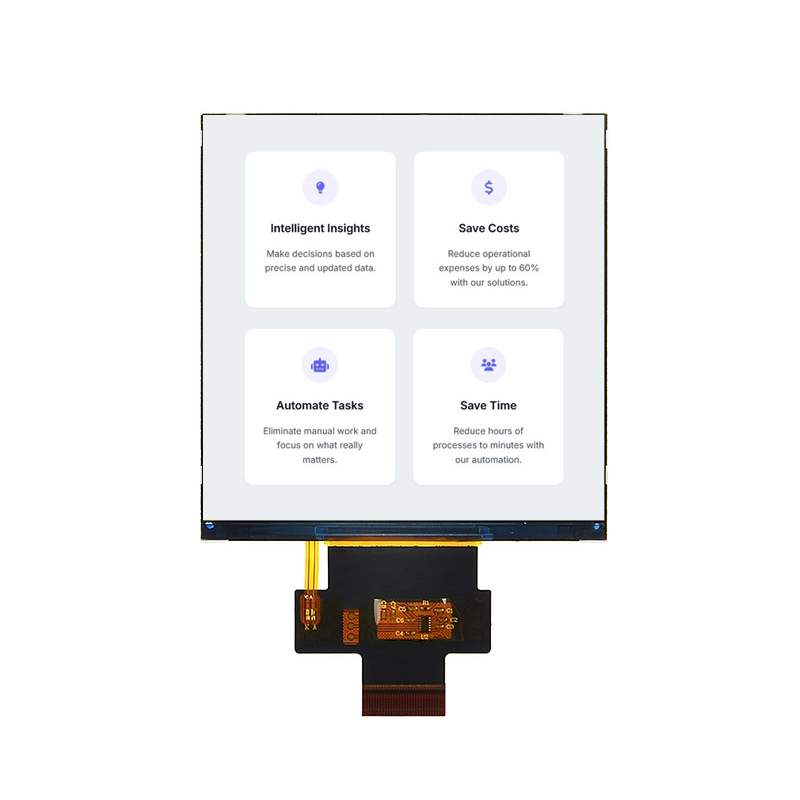

 TOPTE 3.95-Inch Square LCD Display Module Features

To address these challenges, TOPTE developed a customized 3.95-inch square LCD display module optimized for compact AI smart devices.

1.Ultra-Thin LCD Module Structure

The module thickness (excluding FPC) is reduced to less than 1.8 mm.

Using a 0.4 mm ultra-thin light guide plate and side-entry LED backlight architecture, the design achieves a significantly thinner profile compared with standard 3.95-inch LCD modules currently available on the market.

This ultra-thin LCD module design provides more flexibility for compact device integration.

2.High-Resolution IPS Display Technology

The module features a 720 × 720 resolution with IPS full-view technology and a pixel density of 258 PPI, delivering clear and detailed image quality.

The square LCD display format is well suited for:

• AI interaction interfaces
• translation results
• QR code display
• battery indicators
• status notifications
• smart control interfaces

The high pixel density delivers clear and detailed image quality for portable intelligent devices.

3.In-Cell Display Technology for Better Integration

The module adopts In-Cell display technology to help reduce overall thickness and improve optical performance.

Compared with traditional display structures, In-Cell integration helps:

• reduce interface reflections
• improve outdoor readability
• optimize touch responsiveness
• lower overall module thickness

4.3.95-Inch LCD Module Specifications

Custom LCD Module Solutions for AI Smart Devices

As a custom LCD module manufacturer, TOPTE provides flexible customization services for compact intelligent terminal applications.

1.Flexible FPC Customization

TOPTE supports customized FPC structures based on customer motherboard layouts and internal stacking requirements, including:

• connector position adjustment
• routing direction optimization
• custom FPC shapes

2.Custom Touch Panel Solutions

Customized touch panel structures are available with multiple material options, including:

• aluminosilicate glass
• soda-lime glass
• PC materials
• PET materials

3.Additional surface treatments include:

• AG (Anti-Glare)
• AF (Anti-Fingerprint)
• AR (Anti-Reflection)

These technologies help improve outdoor visibility and durability.

4.Integrated Display and Touch Solutions

TOPTE provides integrated solutions for:

• LCD display modules
• capacitive touch modules (CTP)
• resistive touch modules (RTP)
• optical OCA full lamination
• frame bonding integration

5.Interface and Driver Support

Supported interfaces include:

• MIPI
• LVDS
• SPI
• RGB
• MCU

Driver adaptation and software integration services are also available to help reduce development cycles.

For more information about custom LCD display modules or AI smart device display solutions, please contact TOPTE.
