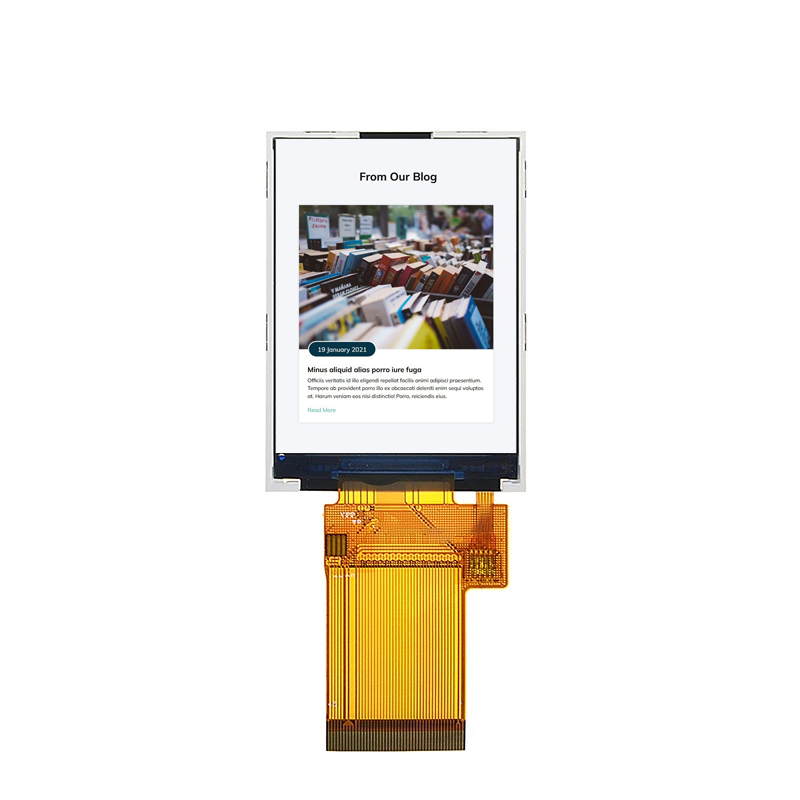

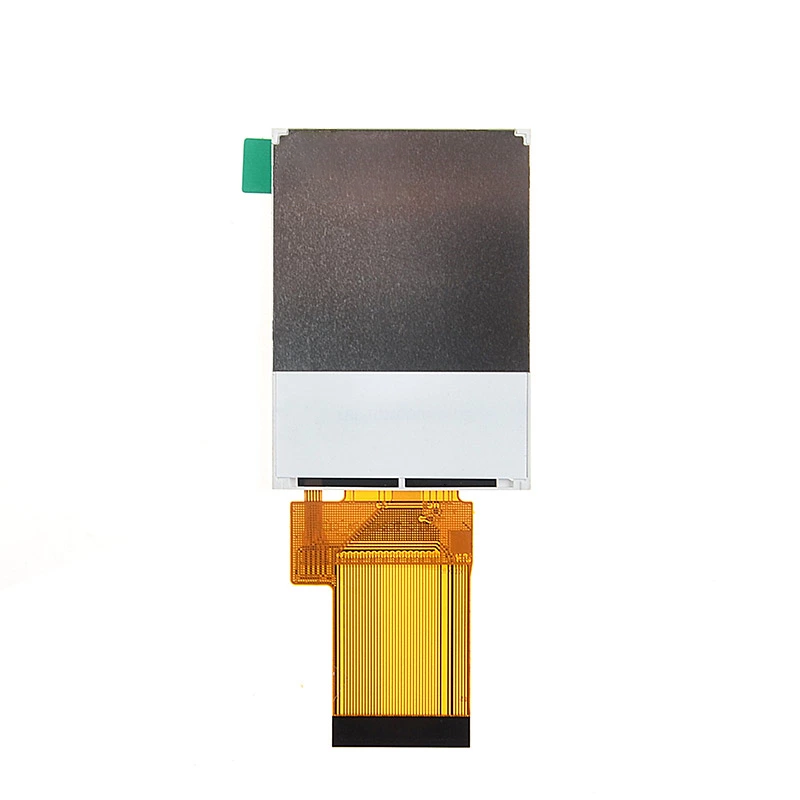

2.4 inch 240×320 TN TFT LCD
Combines monochrome/color display and touch into one
2.4 inch 240×320 TN TFT LCD
Description
Description
| Size | 2.4″ |
| Resolution | 240×320 |
| LCD type | TN |
| HLT model | HIB024A073 |
| Structure | TFT |
| IC | ST7789V |
| LCD AA（mm） | 36.72*48.96 |
| Dimensions/W*H*D（mm） | 42.72*60.26*2.24 |
| Interface | 16位MCU |
| Temperature | OPERATING TEMP: -20°C~70°C STORAGE TEMP: -30°C~80°C |
| （ZIF/BTB） | 36PIN ZIF |
| (with-without TP) | 300cd/m² (MIN),350cd/m² (TYP) |
