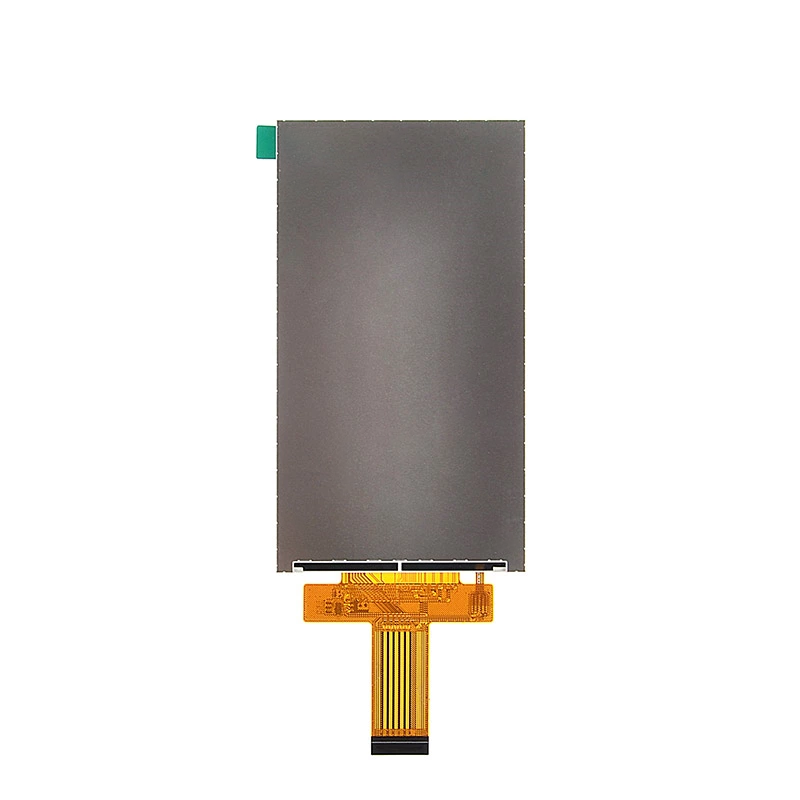

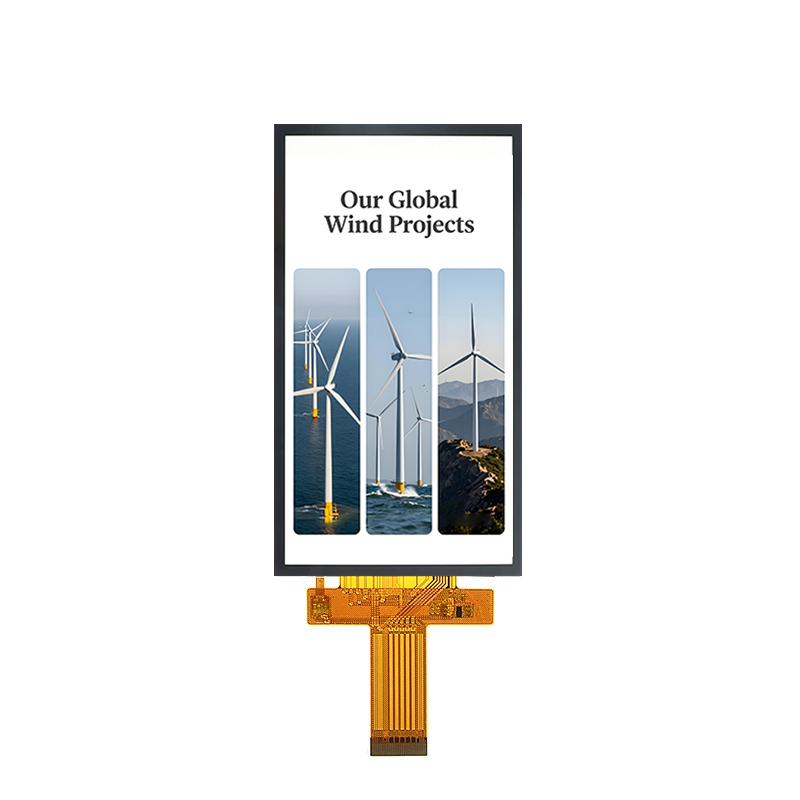

5.0 inch 720×1280 LTPS INCELL+TFT LCD Display
Combines monochrome/color display and touch into one
5.0 inch 720×1280 LTPS INCELL+TFT LCD Display
Description
Description
Application：Action Camera
| Size | 5.0″ |
| Resolution | 720×1280 |
| LCD type | LTPS |
| HLT model | HJBNT050H1195 |
| Structure | TFT |
| IC | JD9165 |
| LCD AA（mm） | 121.5 × 162 |
| Dimensions/W*H*D（mm） | 147.6×184.4×10.38 |
| Interface | MIPI |
| Temperature | OPERATING TEMP: -20°C~70°C STORAGE TEMP: -30°C~80°C |
| （ZIF/BTB） | 40PIN ZIF |
| Brightness | 500 nit |
