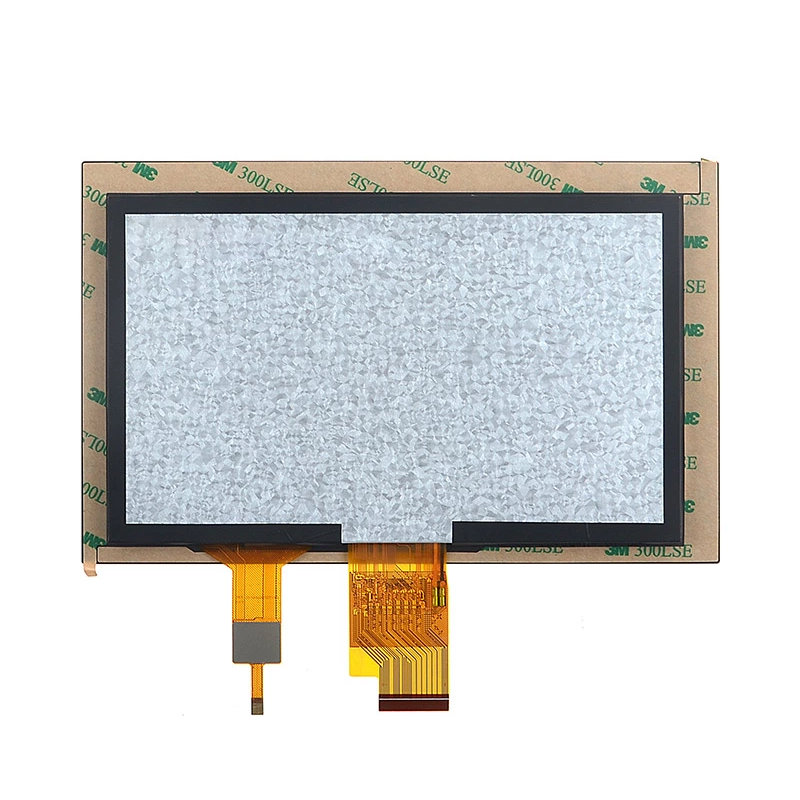

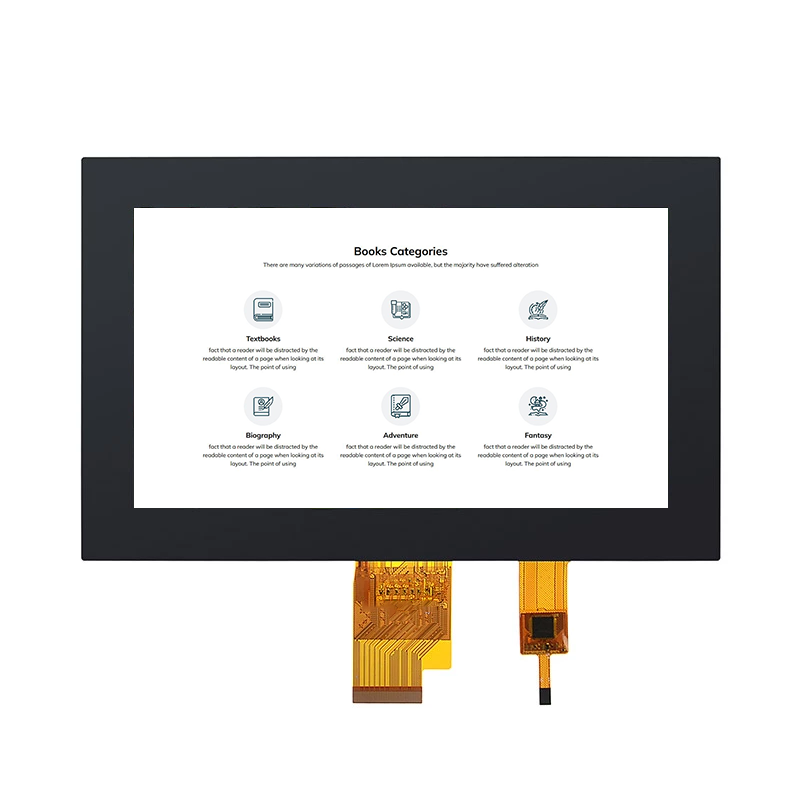

7 inch 1024×600 pixels Incell TFT LCD Display
Combines monochrome/color display and touch into one
7 inch 1024×600 pixels Incell TFT LCD Display
Description
Description
| Size | 7.0″ |
| Resolution | 1024×600 |
| LCD type | Incell |
| HLT model | HIK070H416 |
| Structure | TFT |
| IC | JD9165T |
| LCD AA（mm） | 154.21×85.92 |
| Dimensions/W*H*D（mm） | 173×111.5×4.39 |
| Interface | MIPI |
| Temperature | OPERATING TEMP: -10°C~60°C STORAGE TEMP: 0°C~50°C |
| （ZIF/BTB） | 40PIN ZIF |
| (with-without TP) | 210cd/m² MIN,250cd/m² TYP |
