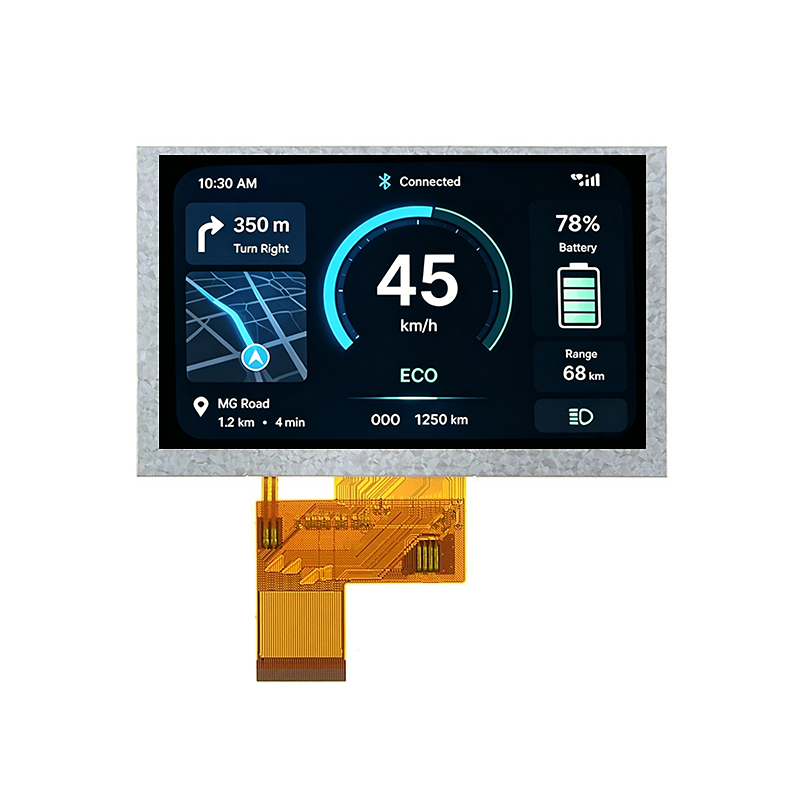

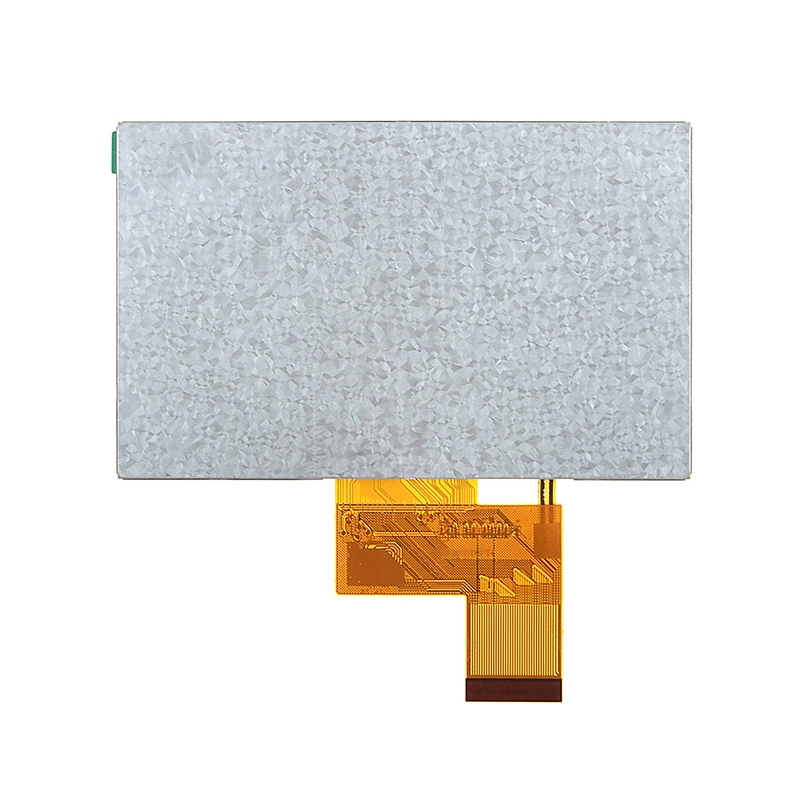

Two-wheeled Vehicle 5inch 800×480 IPS LCD Module
Combines monochrome/color display and touch into one
Two-wheeled Vehicle 5inch 800×480 IPS LCD Module
Description
Description
| Size | 5.0″ |
| Resolution | 800×480 |
| LCD type | IPS |
| HLT model | HAB050W1187 |
| LCD AA | 108.0×64.8 |
| Interface | MIPI |
| Temperature | OT: -40°C ~ 90°C ST: -30°C ~ 85°C |
| （ZIF/BTB） | 40PIN ZIF |
| Brightness | 1000cd/m² MIN, 1500cd/m² TYP |
