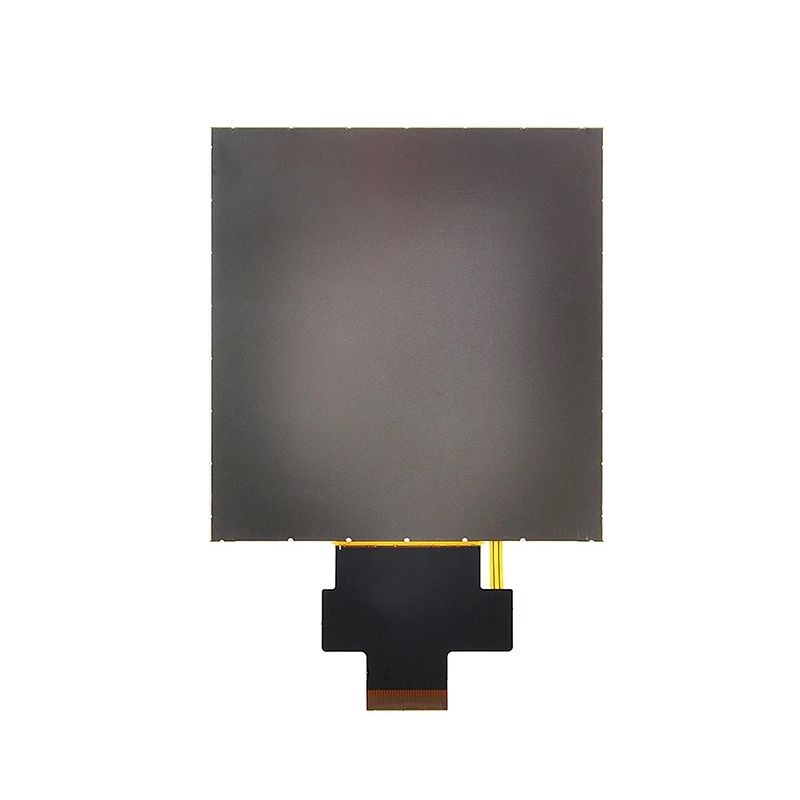

3.95 inch 720×720 Square Type LCD Display Module
Combines monochrome/color display and touch into one
3.95 inch 720×720 Square Type LCD Display Module
Description
Description
Application:AI Card Camera
| Size | 3.95″ |
| Resolution | 720×720 |
| LCD type | Incell |
| HLT model | HJFBS040W247 |
| Structure | TFT |
| IC | AXS15260 |
| LCD AA（mm） | 70.53× 71.28 |
| Dimensions/W*H*D（mm） | 73.13（H）× 77.15（V）× 1.35（T） |
| Interface | MIPI 4-lane DSI |
| Temperature | OPERATING TEMP: -20°C~60°C STORAGE TEMP: -30°C~70°C |
| （ZIF/BTB） | 33PIN ZIF |
| Brightness | 350cd/m² MIN,380cd/m² TYP |
