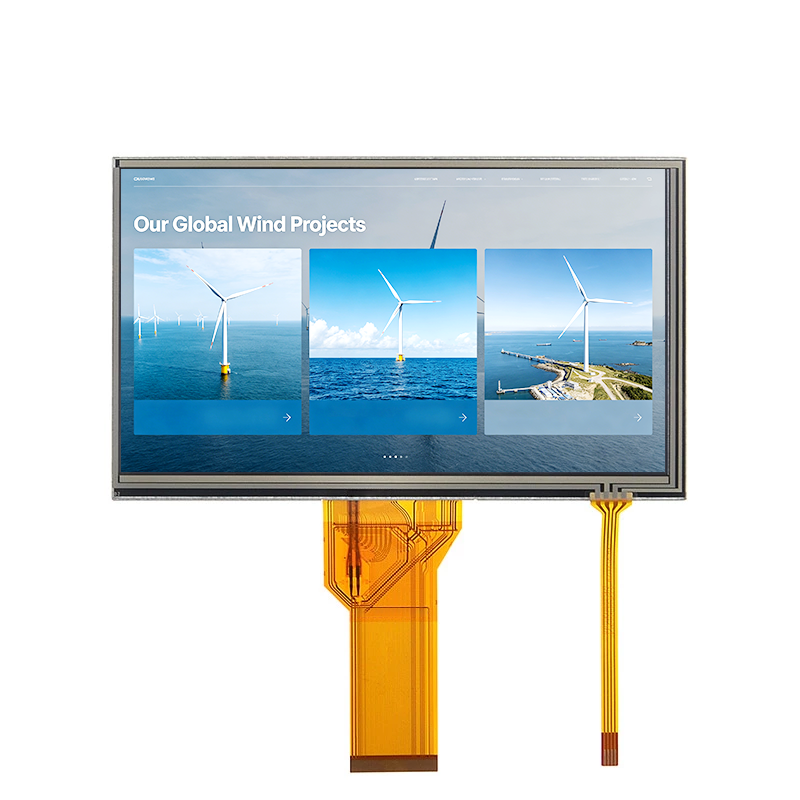

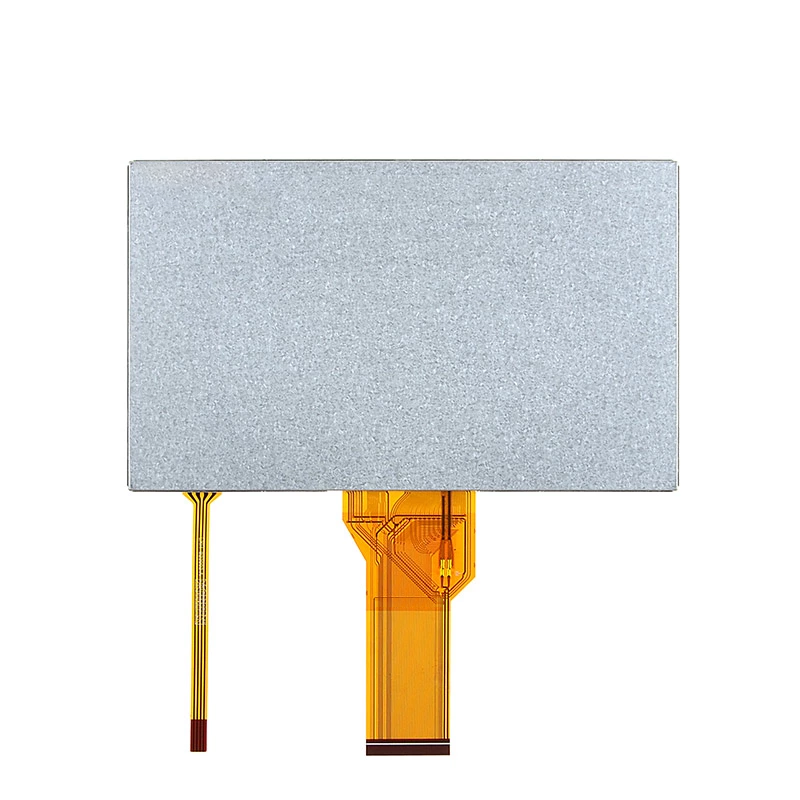

7.0 inch 800×480 pixels TN TFT+CTP LCD Display
Combines monochrome/color display and touch into one
7.0 inch 800×480 pixels TN TFT+CTP LCD Display
Description
Description
| Size | 7.0″ |
| Resolution | 800×480 |
| LCD type | TN |
| HLT model | HIK070W409 |
| Structure | TFT+CTP |
| IC | HX8264+HX8664 |
| LCD AA（mm） | 153.84*85.63 |
| Dimensions/W*H*D（mm） | 164.9*100*5.65 |
| Interface | RGB |
| Temperature | OPERATING TEMP: -20°C~70°C STORAGE TEMP: -30°C~80°C |
| （ZIF/BTB） | 50PIN ZIF |
| (with-without TP) | 800cd/m² (MIN),900cd/m² (TYP) |
