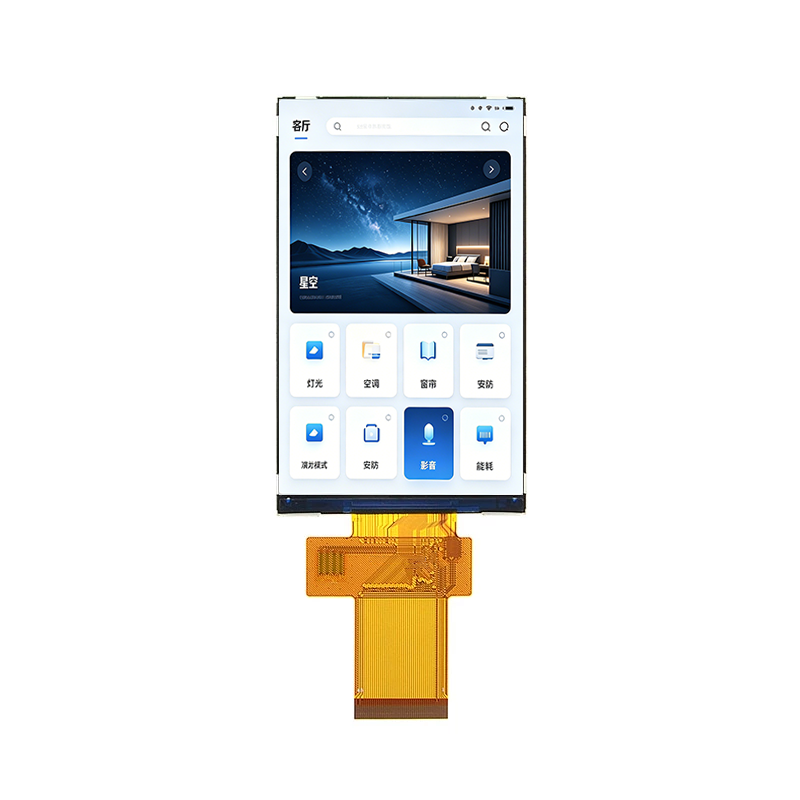

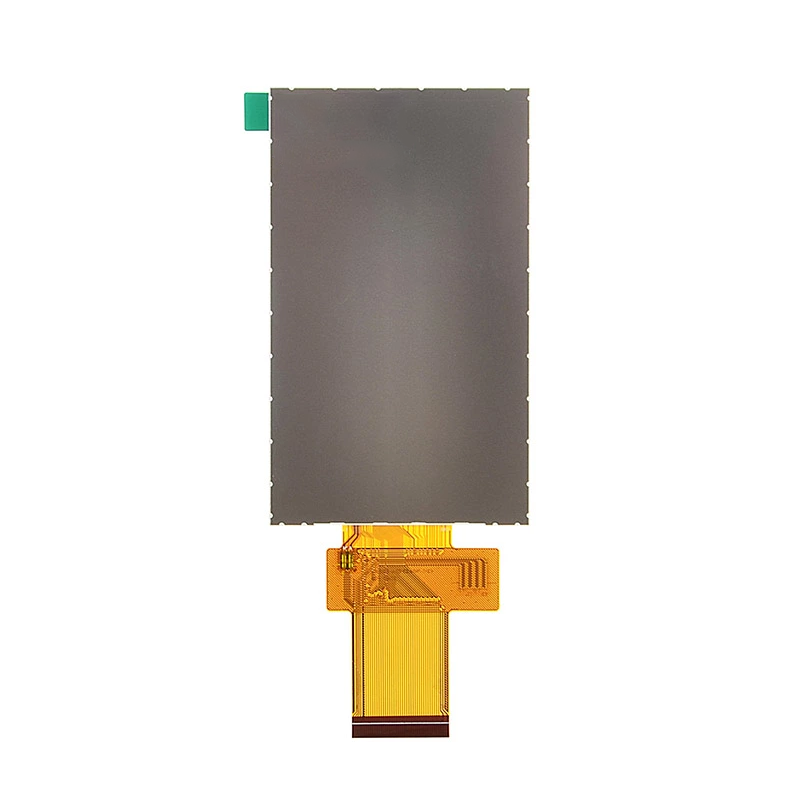

Smart home 4.3-inch 480×800 TFT+CTP LCD Module
Combines monochrome/color display and touch into one
Smart home 4.3-inch 480×800 TFT+CTP LCD Module
Description
Description
| Size | 4.3″ |
| Resolution | 480×800 |
| LCD type | IPS |
| HLT model | HJT043W109 |
| LCD AA（mm） | 56.16×93.6 |
| Interface | MIPI |
| Temperature | OT: -20°C~70°C ST: -30°C~80°C |
| （ZIF/BTB） | 40PIN ZIF |
| Brightness | 450cd/m² MIN, 500cd/m² TYP |
| Application | Smart home |
