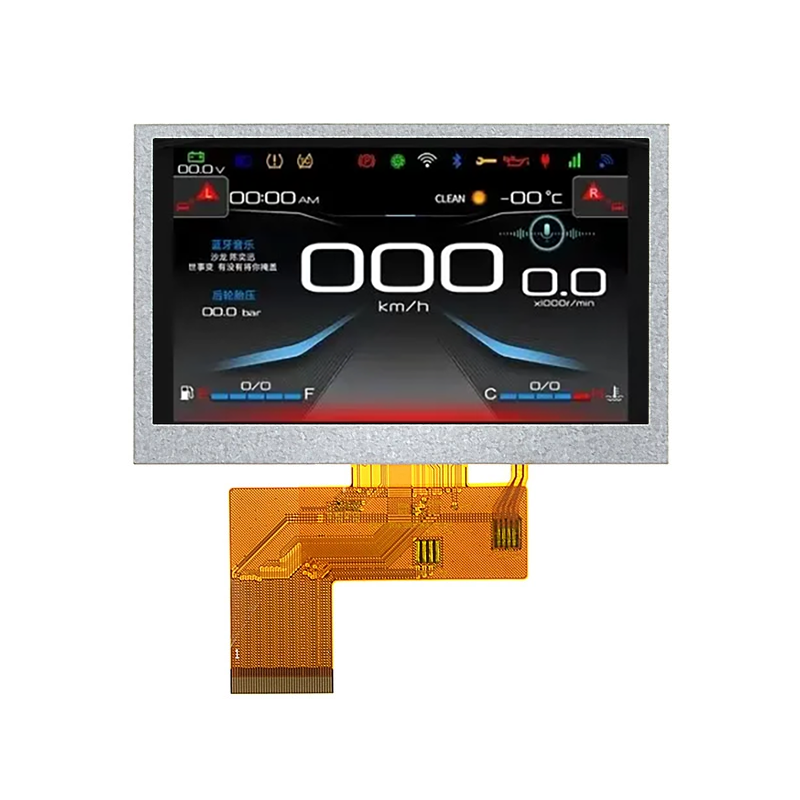

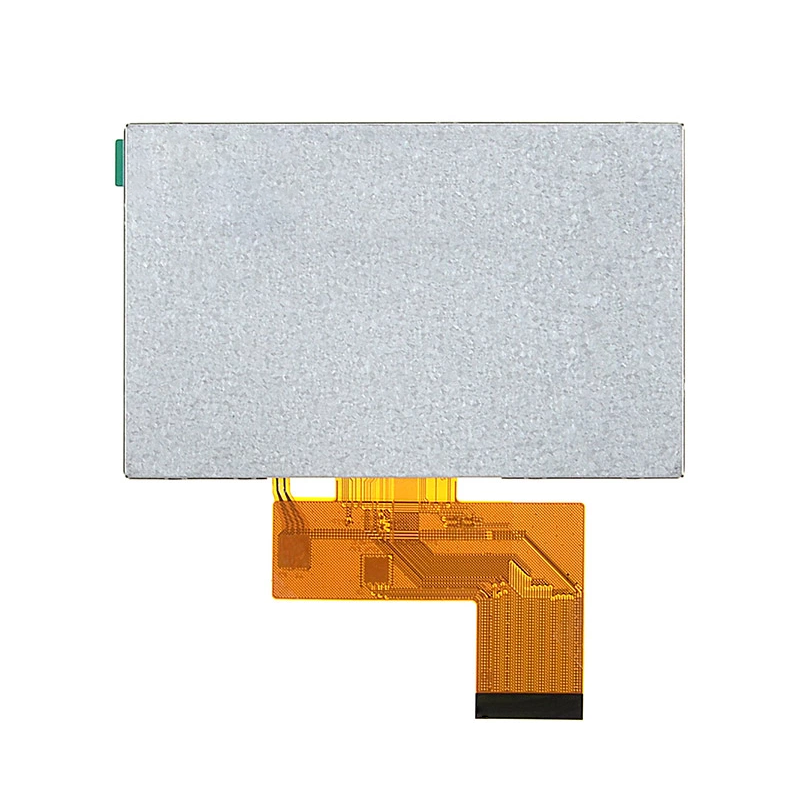

Two-wheeled Vehicle 4.3-inch 480×272 TN LCD Module
Combines monochrome/color display and touch into one
Two-wheeled Vehicle 4.3-inch 480×272 TN LCD Module
Description
Description
| Size | 4.3″ |
| Resolution | 480×272 |
| LCD type | TN |
| HLT model | HABNR043B118-A0 |
| LCD AA | 95.04×53.856 |
| Interface | GND |
| Temperature | OT: -20°C ~ 70°C ST:-30°C ~ 80°C |
| （ZIF/BTB） | 40PIN ZIF |
| Brightness | 800cd/m²MIN; 1000cd/m² TYP |
